Hobbywing XRotor F722 3-6S 20x20 Stack/Combo (F7 FC / 32Bit 45A 4in1 ESC)

Equipped with a powerful STM32F722 MCU and sensitive MPU6500 6-axis motion sensor, the XRotor F722 Stack/Combo offers bidirectional DShot digital throttle communication and a large on-board Flash memory. It also supports various FPV firmwares with adjustable parameters. Its 30/20mm double hole distance and flexible flat cable module (ideal for Hobbywing tower 4in1 ESC) with shock absorption mechanism reduce external vibration impact. For convenience, it includes a PIT switch module, dual BECs (5V & 10V), DJI image transmission port, Amp/Volt monitoring port, buzzer output port, and Micro USB port.

Features

• Manual for the FC

• Manual for the ESC
• Super hardware and running speed
• Special interface for DJI image transmission system
• On-board 5V & 10V dual BEC circuit
• On-board Pit Switch module
• Perfectly support firmware of various FPV
• Unique installation design and shock absorption structure
• Perfectly match with Hobbywing ESC
• Volt/Amp monitoring port
• Buzzer output
• Micro USB
• Switch module of board load graphic transmission(VTX)

 Specifications

XRotor F7 FC

• MCU: STM32F722
• Gyro: MPU6500
• Barometer: No
• OSD: Yes
• Blackbox: Onboard
• UARTS: 4 Sets
• ESC Software: DShot300/600/12000
• ESC Telemetry: Yes
• Led Controller: Yes
• Input Voltage: 3-6s Lipo (12.6-25.2V)
• BEC: 5V 2A / 10V 2A
• Mounting Pattern: 20x20mm M3 / 30x30mm M3

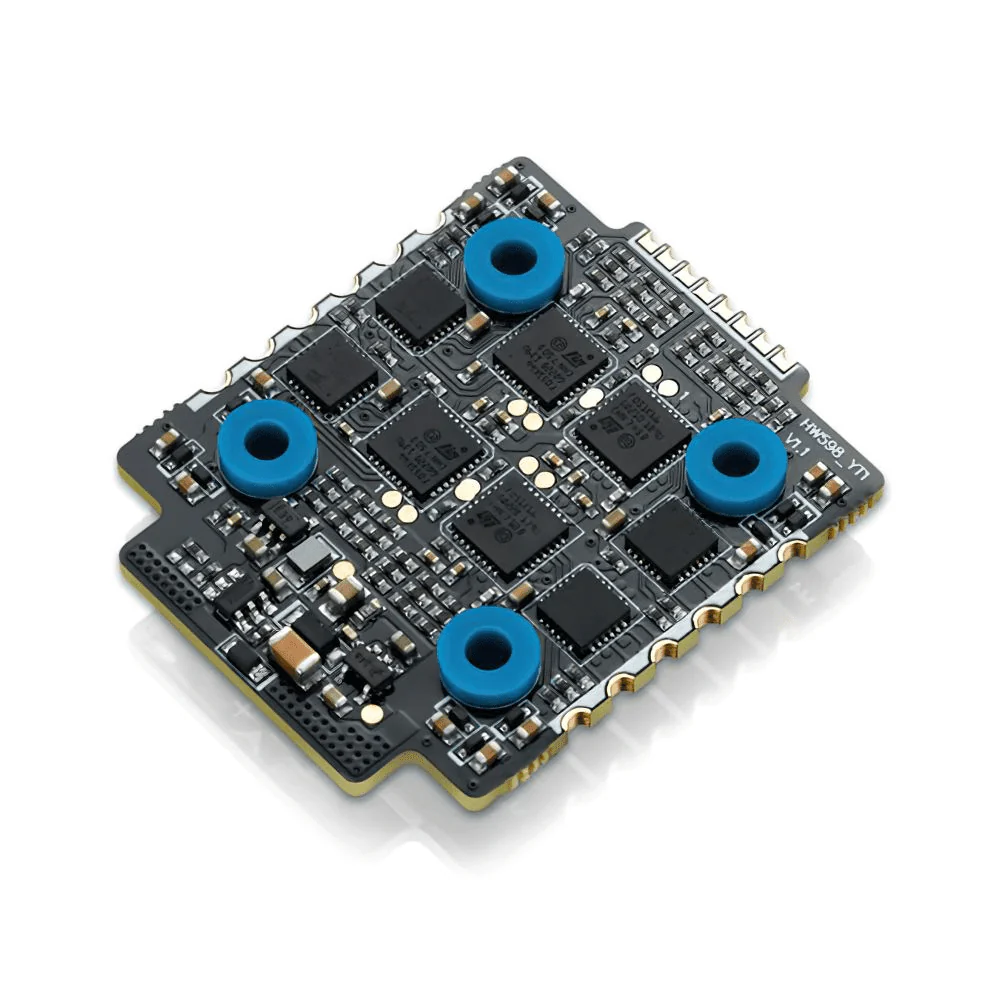

XRotor 45A BLHeli_32 ESC

• Input Voltage: 3-6S
• Max Continuous Current: 45A
• Max Burst Current: 60A
• BEC Output: NO
• Firmware: Hobbywing_XRotor_BLHeli-32 Version
• Throttle Calibration: Supported
• ESC Programming: Stick Programming, BLHeliSuite32
• DEO: Supported
• OneShot Mode: Supported
• Timing: Supported
• Motor Rotation: Supported
• Mounting Pattern: 20x20mm

• Weight: 12g

Includes

• 1x Hobbywing XRotor F722 3-6S 20x20 Stack/Combo (F7 FC / 32Bit 45A 4in1 ESC)
• 1x Hardware Set
• 1x AMASS XT60 Connector
• 1x Cable Set
