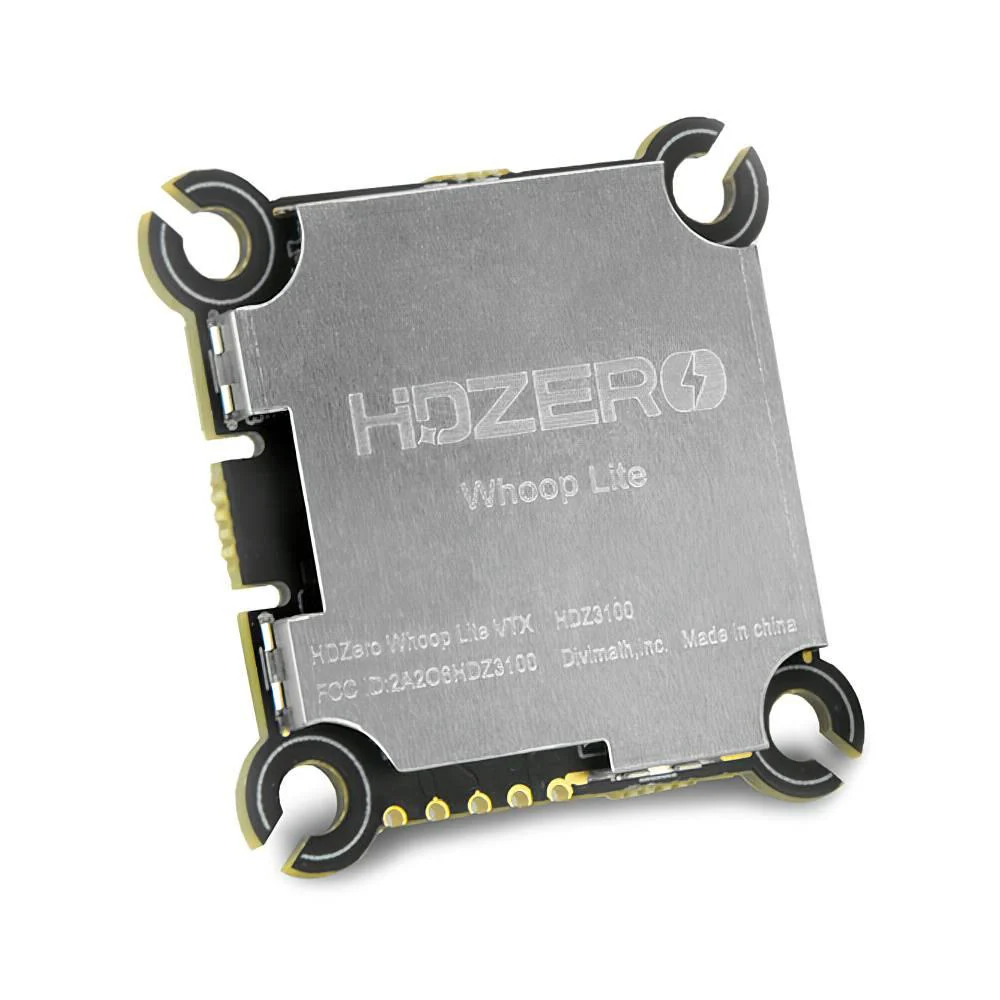

HDZero Whoop Lite 25x25 200mw Digital HD VTX - U.FL

HDZero Whoop Lite 25x25 200mw Digital HD VTX - U.FL

Features

  • Ultra-high sensitive CMOS sensor
  • Excellent low light performance
  • Removable Shielding Box
  • Supports Smart Audio
  • Under 7g in Weight
  • 4mm Thickness
  • 1S-3S Input

Specifications

  • Mounting Pattern: 25.5x25.2 M2 (soft mounting)
  • Dimensions: 32.4x32.5mm (29x29mm inner)
  • Video Connector: 20 Position 0.30mm Pitch
  • Resolution Default: 1280*720@60fps
  • Interface: 4-lane MIPI CSI YUV422
  • RF Power: 25mw/200mw
  • Smart Audio: Supported
  • Power: 1000mA@5V
  • Power input: 1S-3S
  • RF Connector: U.FL
  • Frequency: 5.8G
  • Thickness: 4mm
  • SKU: HDZ3100
  • Weight: 4.5g

Includes

  • 1x HDZero Whoop Lite VTX
  • 4x Rubber Grommet (M3 to M2)
  • 5x Power/Uart Cable
  • 2x Zip ties
