RUSHFPV Blade F722 V2 30x30mm Flight Controller for Analog
HomeStore

RUSHFPV Blade F722 V2 30x30mm Flight Controller for Analog

RUSHFPV Blade F722 V2 30x30mm Flight Controller for Analog

FEATURES

  • High-performance STM32 F722 MCU with speeds up to 216MHz.
  • Built-in 16Mb black box memory, Barometer, 5 UART ports, 6 PWM output ports, 2 ADC ports, 1 l2C port, 1 Camera Control Port.
  • Integrated 36V input power supply, up to 6S lipo battery supported, 5V 2A BEC Output.
  • Modular cable design, with reliable locking structure, can be installed quickly, while retaining full-featured pads on the back, providing more expansion support.
  • Optimized for stack installation, the single-sided component placement method makes the thickness thinner, and the bottom is covered with complete copper to resist ESC Interference.
  • The full-covered lightweight metal shell protects internal electronic components and provides perfect heat dissipation.

SPECIFICATIONS

  • MCU: STM32 F722
  • GYRO: ICM42688P
  • Blackbox: 16Mb SPI Flash
  • Input Voltage: 7-36V (3-6S)
  • BEC Output: 5V/3A
  • OSD: CVBS PAL/NTSC
  • Mounting Holes: 30.5mm x 30.5mm
  • LED: Compatible
  • Dimensions: 29mm x 29mm x 6.8mm
  • Weight: 5g (Without Cables)

PACKAGE INCLUDES:

  • 1 x RUSH BLADE F722 30x30 Flight Controller For Analog
  • 1 x 60MM LED Cable
  • 1 x 60mm UART Cable
  • 1 x 60MM Modular ESC Cable
  • 1 x Camera Cable
  • 1 x VTX Cable
  • 5 x Small Grommets
  • 5 x Big Grommets


$414,033.86

Original: $1,380,112.87

-70%
RUSHFPV Blade F722 V2 30x30mm Flight Controller for Analog—

$1,380,112.87

$414,033.86

More Images

RUSHFPV Blade F722 V2 30x30mm Flight Controller for Analog - Image 2

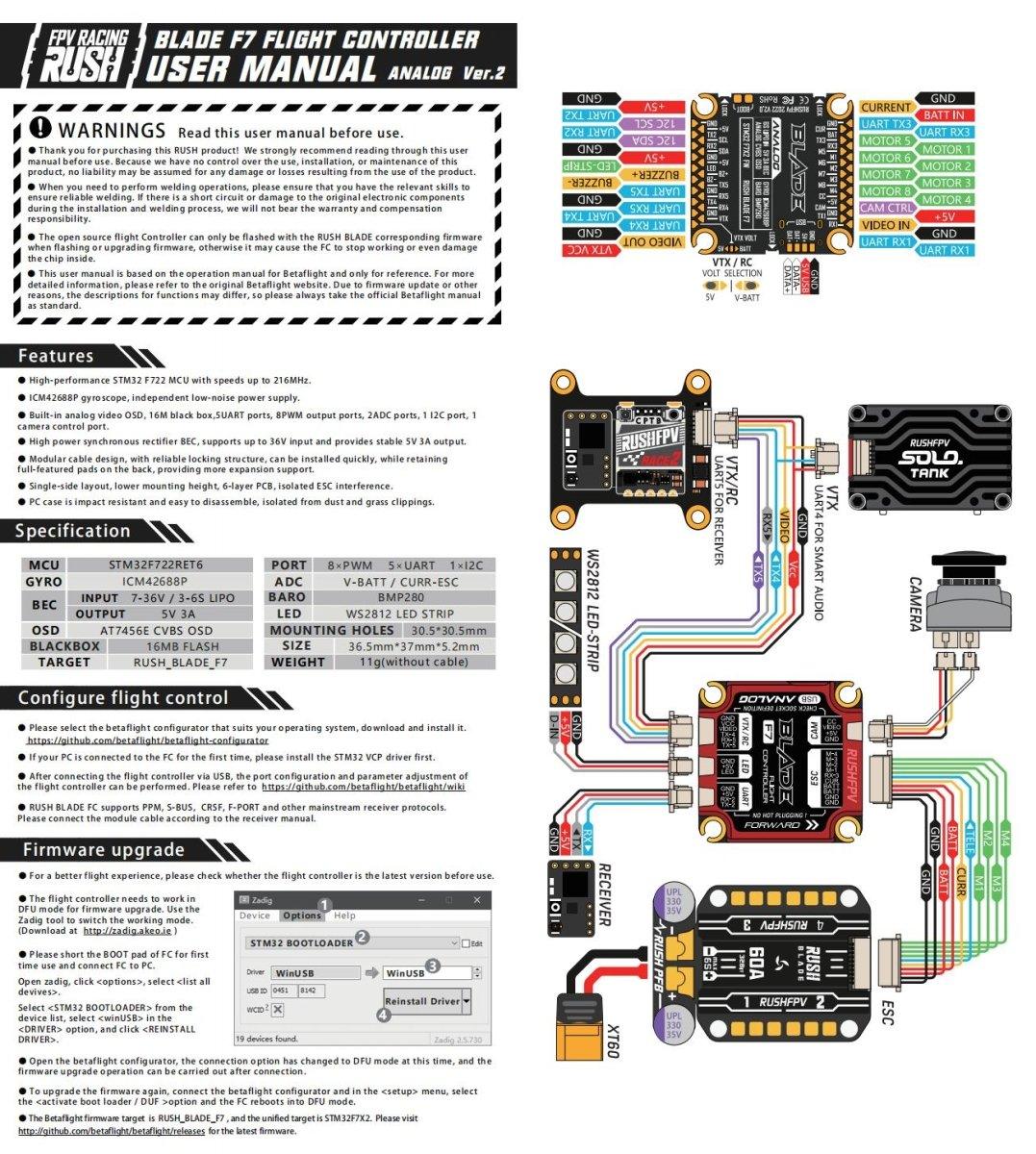

RUSHFPV Blade F722 V2 30x30mm Flight Controller for Analog - Image 3

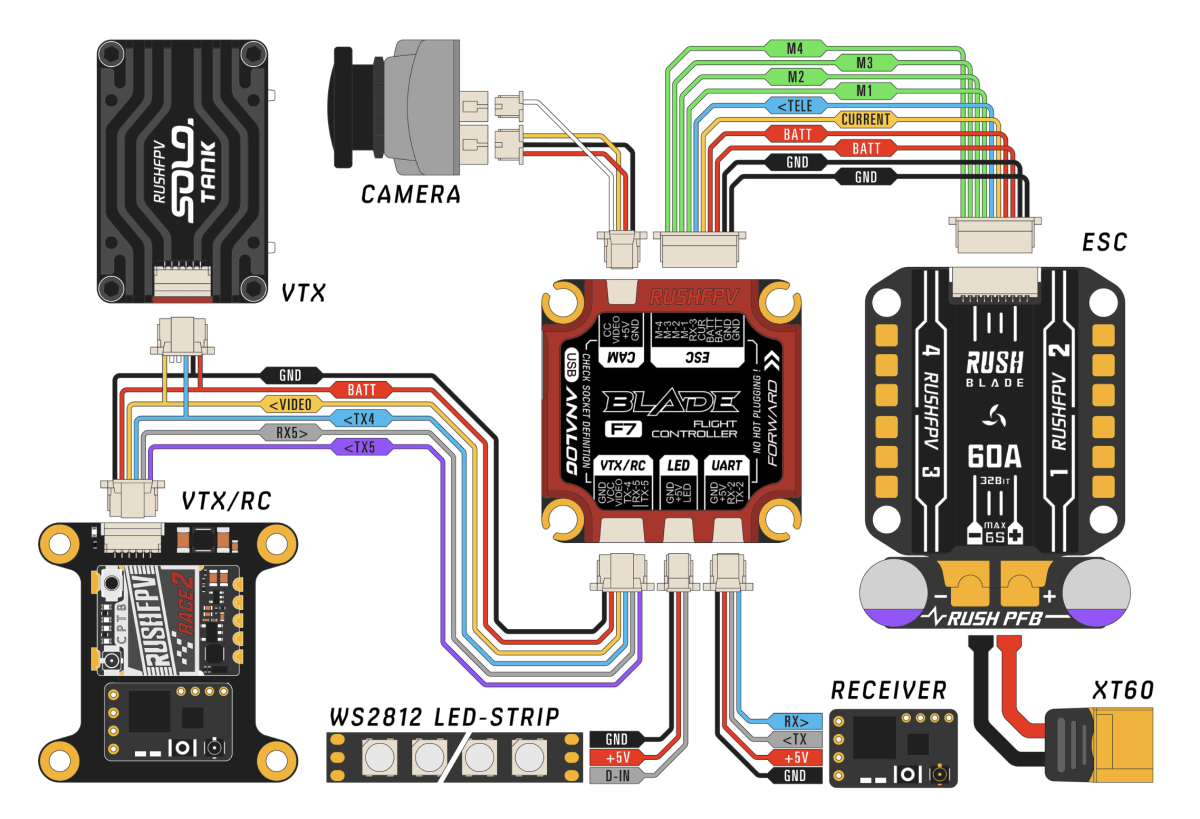

RUSHFPV Blade F722 V2 30x30mm Flight Controller for Analog - Image 4

RUSHFPV Blade F722 V2 30x30mm Flight Controller for Analog

FEATURES

  • High-performance STM32 F722 MCU with speeds up to 216MHz.
  • Built-in 16Mb black box memory, Barometer, 5 UART ports, 6 PWM output ports, 2 ADC ports, 1 l2C port, 1 Camera Control Port.
  • Integrated 36V input power supply, up to 6S lipo battery supported, 5V 2A BEC Output.
  • Modular cable design, with reliable locking structure, can be installed quickly, while retaining full-featured pads on the back, providing more expansion support.
  • Optimized for stack installation, the single-sided component placement method makes the thickness thinner, and the bottom is covered with complete copper to resist ESC Interference.
  • The full-covered lightweight metal shell protects internal electronic components and provides perfect heat dissipation.

SPECIFICATIONS

  • MCU: STM32 F722
  • GYRO: ICM42688P
  • Blackbox: 16Mb SPI Flash
  • Input Voltage: 7-36V (3-6S)
  • BEC Output: 5V/3A
  • OSD: CVBS PAL/NTSC
  • Mounting Holes: 30.5mm x 30.5mm
  • LED: Compatible
  • Dimensions: 29mm x 29mm x 6.8mm
  • Weight: 5g (Without Cables)

PACKAGE INCLUDES:

  • 1 x RUSH BLADE F722 30x30 Flight Controller For Analog
  • 1 x 60MM LED Cable
  • 1 x 60mm UART Cable
  • 1 x 60MM Modular ESC Cable
  • 1 x Camera Cable
  • 1 x VTX Cable
  • 5 x Small Grommets
  • 5 x Big Grommets


Product Information

Shipping & Returns

Description

FEATURES

  • High-performance STM32 F722 MCU with speeds up to 216MHz.
  • Built-in 16Mb black box memory, Barometer, 5 UART ports, 6 PWM output ports, 2 ADC ports, 1 l2C port, 1 Camera Control Port.
  • Integrated 36V input power supply, up to 6S lipo battery supported, 5V 2A BEC Output.
  • Modular cable design, with reliable locking structure, can be installed quickly, while retaining full-featured pads on the back, providing more expansion support.
  • Optimized for stack installation, the single-sided component placement method makes the thickness thinner, and the bottom is covered with complete copper to resist ESC Interference.
  • The full-covered lightweight metal shell protects internal electronic components and provides perfect heat dissipation.

SPECIFICATIONS

  • MCU: STM32 F722
  • GYRO: ICM42688P
  • Blackbox: 16Mb SPI Flash
  • Input Voltage: 7-36V (3-6S)
  • BEC Output: 5V/3A
  • OSD: CVBS PAL/NTSC
  • Mounting Holes: 30.5mm x 30.5mm
  • LED: Compatible
  • Dimensions: 29mm x 29mm x 6.8mm
  • Weight: 5g (Without Cables)

PACKAGE INCLUDES:

  • 1 x RUSH BLADE F722 30x30 Flight Controller For Analog
  • 1 x 60MM LED Cable
  • 1 x 60mm UART Cable
  • 1 x 60MM Modular ESC Cable
  • 1 x Camera Cable
  • 1 x VTX Cable
  • 5 x Small Grommets
  • 5 x Big Grommets
